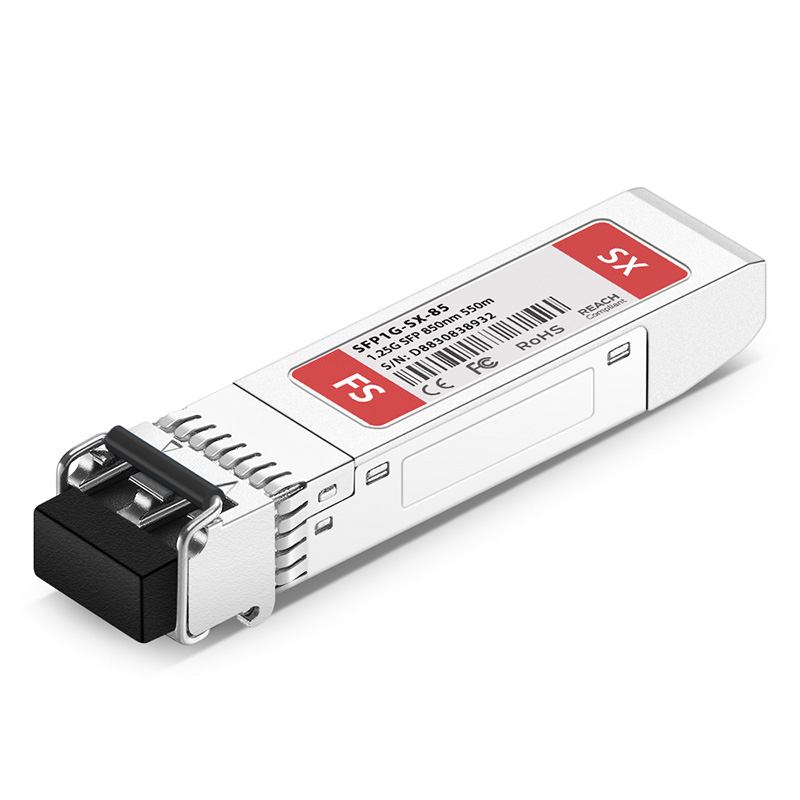

Fiber 1Gb SFP GLC-SX-MM 1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF Transceiver

SKU: GLC-SX-MM
Availability: In stock
Delivery date: Lead Time 1 - 2 days
Manufacturer: MikroTik
Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF Transceiver Module
$12.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cisco GLC-SX-MM compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.



Specifications

Cisco Compatible
GLC-SX-MM

Vendor Name
FS

Form Factor
SFP

Max. Data Rate
1.25Gbps

Wavelength
850nm

Max. Cable Distance
550m@50/125µm OM2 MMF
[email protected]/125µm OM1 MMF
[email protected]/125µm FDDI MMF

Connector
Duplex LC

Media
MMF

Transmitter Type
VCSEL

Receiver Type
PIN
DDM/DOM

Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)

TX Power
-9.5 ~ - 3dBm

Receiver Sensitivity
< -17dBm

Typical Power Consumption
≤0.8w

Receiver Overload
-3dBm

Bit Error Ratio (BER)
1E-12

Extinction Ratio
>9dB

EMC (Electro Magnetic Compatibility)
Supported

MTBF (SX)
2,457,002 Hours

Protocols
IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
