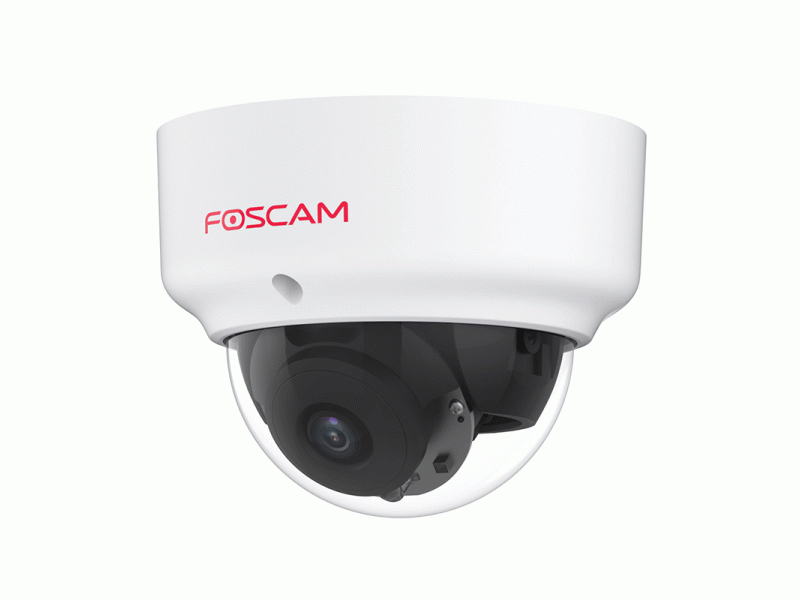

Professional IK10 vandal-proof rating
IK10 vandal-proof dome cover can withstand devastating impacts. Rest assured knowing that the camera is able to protect itself from vandalism while looking after your beloved ones and properties.
Sharp video feed
without image distortion
Enjoy true 1080P streaming video. The stunning detailed image leaves nothing to question. Advanced built-in software effectively prevents image distortion and creates vivid image effect.
Visual effect surpasses
human eyes with WDR 2.0
Advanced WDR 2.0 technology optimizes image quality under a wide range of lighting conditions. Both extremely bright and dark areas can be visible for you. Visual effect of special scenes can be better than human eyes.
Detected motion triggers recording and alert push
Advanced algorithm can detect human motions automatically. If something happens, video recording is triggered immediately. Meanwhile, the ream-time alerts about the event will be pushed to your email, FTP or mobile phone.
Clear night vision deters criminals at night
Two infrared lamp arrays provide 66-feet (20-meter) IR range for you to see clearly in complete darkness. Around-the-clock guard help deter the criminals under the cover of night and let you rest easy anywhere anytime.
Tips: Real-time captured image alert can be pushed to you if Foscam Cloud Service is subscribed. Or else there is only real-time text alert push.
Multiple storage methods
to retain crucial moments
Worried about SD card is ruined by criminals? Or the storage capacity of your PoE NVR is far from enough? Try Foscam cloud service which has no capacity limit and is able to store video out of criminal’s reach.
Power over Ethernet
With the help of PoE technology, this camera can be powered by Ethernet cable. Wiring work becomes easier for you.
Weatherproof design for outdoor use
IP66-rated housing is specially designed to ensure protection against all types of bad weather. Year-round security monitoring never stops due to 14℉~140℉ operating temperature range.
One-click firmware
upgrade via mobile app
FOSCAM regularly releases firmware updates to protect its camera away from hackers. But it used to be tricky for the user to operate. In view of this, one-click firmware upgrade is developed for firmware update on mobile App.
- Features
- Specifications
- Download Center
| IPC Specifications & Features Comparison | Model | D2EP |
| Color | Color | White |
| Chipset | CPU | MSC316DC |
| | Optical zoom | N/A |
| Video | Lens Type | f:2.8mm,F:2.0 |
| Sensor Type | 1/2.7'' CMOS |
| Angle of View | Horizontal:110°
Diagonal :130° |
| Min. Illumination | 0 Lux (With IR Illuminator) |
| Display Resolution（Max） | 2.0MegaPixels
(1920*1080) |
| IR-LED | High performance infrared array LED |
| Night Vision | 20m |
| Infrared mode | Automatic or manual |
| IR-CUT | √ |
| Image Frame Rate | 25fps（1080P）, downward adjustable |
| Resolution | 1080P(1920x1080),720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) |
| Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable |
| Mirro/Flip | √ |
| WDR | Improve image clarity in complex scenario |
| Image Compression | H.264(H.265 coming soon) |
| Stream | dual stream |
| Network | Network Protocol | IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、RTSP、ONVIF |
| P2P | √ |
| ONVIF | √ |
| Built-in DDNS Server | N/A |
| Interface | Power Jack | DC |
| Power Supply | DC 12V/1.0A |
| Ethernet | One 10/100Mbps RJ45 port |
| SD Card Slot | √ |
| SD Management | √ |
| 802.3af PoE | √ |
| External I/O | N/A |
| RS485 | N/A |
| Reset | Reset button is available |
| Audio in/out | √ |
| 2-Way Audio | √ |
| Wifi | Wireless Standard | N/A |
| Wireless Security | N/A |
| Data Rate | N/A |
| EZLink | N/A |
| WPS | N/A |
| SoftAP | N/A |
| Alarm | Motion Detection | √ |
| Human Detection | √ |
| PIR Detection | N/A |
| Sound Detection | N/A |
| Temp. Detection | N/A |
| Humidity Detection | N/A |
| Alarm Record | √ |
| Schedule Record | √ |
| E-mail/FTP Alarm | √ |
| Storage | Micro SD card(max128G ), local ，NVR, FTP and Cloud storage |
| Software Features | PT | N/A |
| Preset | N/A |
| Cruise | N/A |
| Magic zoom | N/A |
| Digital zoom | 6X |
| Multi-camera | √ |
| Snapshot | √ |
| Playback | √ |
| DST | √ |
| Privacy zone | N/A |
| Nursery Rhymes | N/A |
| Cloud Storage | √ |
| Pushing message | √ |
| User Accounts | Three levels user role |
| IP Filtering | √ |
| Intelligent Assistant | Intelligent Assistant | Supports Alexa |
| System Requirements | Operating System | Microsoft Windows XP, 7, 8,10;Mac OS, iOS, Android |
| Browser | Microsoft IE8 and above version or compatible browser;
Google Chrome;
Apple Safari. |
| Physical | Dimension(LxWxH) | 112.5(L)x112.5 (W)x88(H) mm |
| Net Weight | 700g |
| manual Pan/Tilt Angle | Horizontal:360° & Vertical: 90° |
| Power Consumption | <4.5W |
| Environment | Waterproof | IP66 |
| Vandal-Proof | IK10 |
| Operating Temperature | -20°C~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 20% ~ 85% non-condensing |
| Storage Temperature | -20°C ~ 60° (-4°F ~ 140°F) |
| Storage Humidity | 0% ~ 90% non-condensing |
| Others | Certification | CE, FCC, RoHS,WEEE |
