Overview

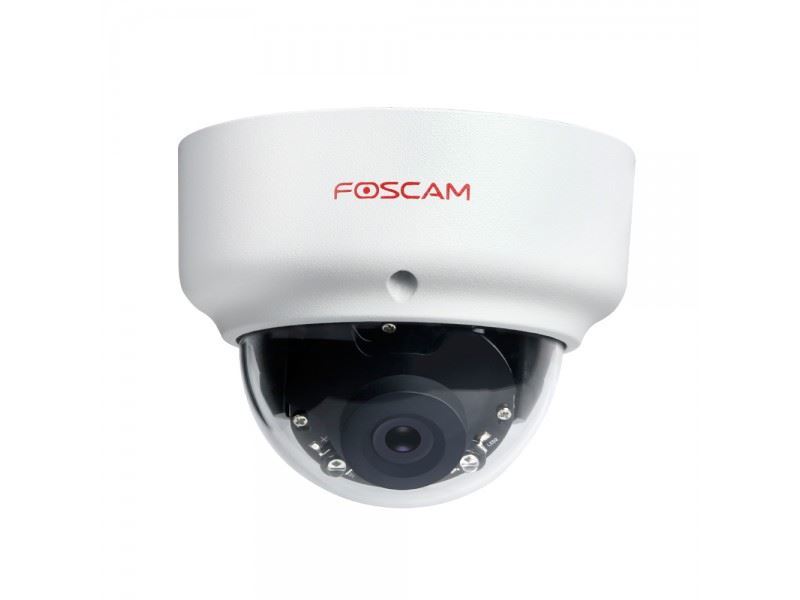

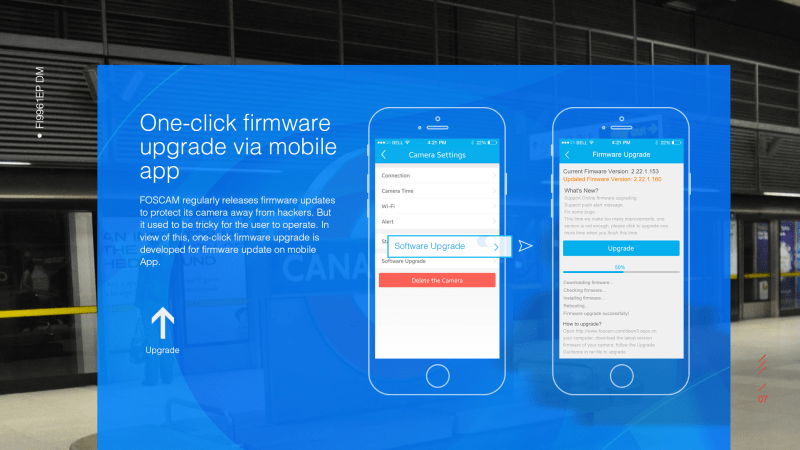

Foscam FI9961EP provides 2.0 megapixel (1920×1080) full HD streaming video for the monitoring of your home or business. WDR 2.0 can enhance the clarity of image under a wide range of lighting conditions, even in the backlight scene. The easy setup procedure is specially designed for DIY surveillance lovers. The multiple access methods allow you to view real-time video on browsers, smart phones or locally on a monitor. 66-foot (20 meters) IR range for clear night vision and IP66 rated housing makes this camera a perfect fit for outdoor use. Intelligent motion detection tells you when something’s up. Regular firmware release from FOSCAM is a good way to protect your camera away from hackers. What you need to do is just update the camera’s firmware by one click. As a vandal-proof camera with IK10 rating, this camera not only protects you, but also itself.
Foscam FI9961EP Features
- IK10 vandal-proof cover to protect camera from devastating impacts
- 2.0 megapixel full HD streaming video
- WDR 2.0 for better image under a wide range of lighting conditions
- Powerful infrared lamp arrays for IR Range up to 66 feet
- IP66 waterproof rating
- Standard PoE for easier wiring and smaller through-wall hole
- Quick QR code access and remote viewing via iOS and Android Foscam APP
- Superior two-way audio with external mic and speaker
- Supports recording and alert push (to mobile app, email or FTP) triggered by motion detection
- Real-time captured image push to mobile app with Foscam Cloud Service subscribed
- H.264 video compression
- Supports backup to external storage device
What’s in the Box
- Foscam FI9961EP
- Power Adapter
- Quick Installation Guide
- Warranty Card
- Security Warning Card
- Expansion Screws
- Hexagon Screwdriver
- Foscam Storage Service Card
- Aftersales Service Card
Warranty
2 Year Warranty
Tech Specs Table
| Name | FI9961EP |
|---|
| Version | V2.0 and above | V1.0 |
| Sensor | High Definition Color CMOS Sensor |
| Display Resolution | 2.0 megapixel (1920x1080) |
| Min. Illumination | 0 Lux (with IR Illuminator) |
| Lens Type | Glass lens |
| Focal Length | f:2.8mm | f:4.0mm |
| Aperture | F:2.0 | F:2.0 |
| Angle of view | Horizontal:100°, Diagonal :107° | Horizontal:68°, Diagonal :76° |
| Image Compression | H.264 |
| Image Frame Rate | 30fps(60Hz), 25fps(50Hz), downward adjustable |
| Resolution | 1080P (1920x1080), 720P (1280x720), VGA(640x480), QVGA (320x240) |
| Stream | Dual stream |
| Image Adjustment | The hue, brightness, contrast, saturation and sharpness are adjustable |
| Flip Image | Flip and mirror |
| Infrared Mode | Automatic or manual |
| Night Visibility | With two infrared array LEDs, IR Range up to 66 feet (20 meters) |
| Input/Output | External TRS interface for two-way audio |
| Audio Compression | PCM/G.726 |
| Ethernet | One 10/100Mbps RJ45 port |
| Remote Access | P2P DDNS |
| Network Protocol | IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF |
| Operating System | Microsoft Windows 2000/XP, Vista, 7,8; Mac OS |
| Browser | Microsoft IE8 and above versions or compatible browser; Apple Safari |
| Motion Detection | Alarm via email, upload alarm snapshot to FTP |
| Privacy Block | Set privacy area manually |
| User Account | Three-level user role |
| Firewall | Supports IP filtering |
| Reset | Reset button is available |
| Power Supply | DC 12V/1.0A |
| Power Consumption | <4.5W |
| Dimensions (LxWxH) | 112.5x112.5x88mm (4.4''x4.4''x3.5'') |
| Net Weight | 700g |
| Waterproof | IP66 |
| Vandal-Proof | IK10 |
| Operating Temperature | -10°C~60°C (14°F ~ 140°F) |
| Operating Humidity | 10%~80% (non-condensing) |
| Storage Temperature | -20°C~60°C (-4°F~140°F) |
| Storage Humidity | 0%~90% (non-condensing) |
| Certification | CE, RoHS, FCC, IC,IP66 |
| Warranty | Limited 1-year warranty |
