LTU Lite-International
SKU:
LTU-Lite- Interational
Delivery date: Out of Stock

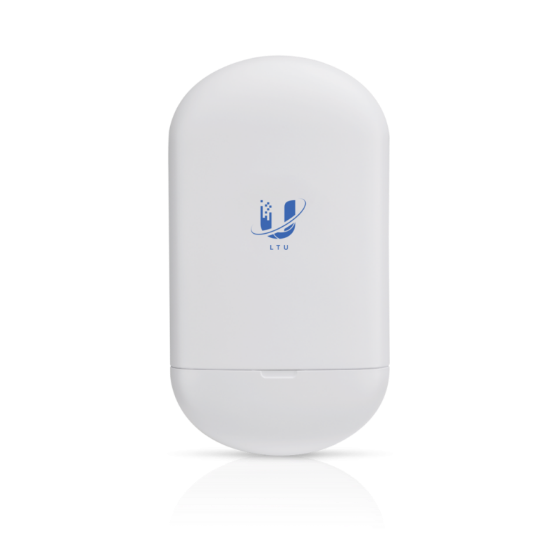

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE.
The LTU Lite
LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Features
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
Functions in a PtMP environment with the LTU-Rocket as the basestation
Product Specification
| LTU-LITE |
| Dimensions |
153 x 84 x 39.5 mm
(6.02 x 3.31 x 1.56") |
| Weight |
250 g
(8.82 oz) |
| Networking Interface |
(1) 10/100/1000 Ethernet Port |
| Enclosure |
Outdoor UV Stabilized Plastic |
| Max. Power Consumption |
8.5W |
| Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Voltage Range |
22 - 26V |
| Max. Conducted TX Power |
22 dBm per Chain |
| Gain |
13 dBi |
| Cross-pol Isolation |
20 dB Minimum |
| Max. VSWR |
1.8:1 |
| Beamwidth |
45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization |
Dual Linear |
| Mounting |
Pole-Mount Wall Mount (Kit Included) |
| Wind Loading |
20 N @ 200 km/h
(4.5 lbf @ 125 mph) |
| Wind Survivability |
200 km/h
(125 mph) |
| ESD/EMP Protection |
± 24kV Contact/Air |
| Operating Temperature |
-40 to 60° C
(-40 to 140° F) |
| Operating Humidity |
5 to 95% Noncondensing |
| Certifications |
CE, FCC, IC |
| OPERATING FREQUENCY (MHZ) |
| Worldwide |
2400 - 2483.5*
4800 - 6200* |
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3 |
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850 |
| EU |
2400 - 2483.5
5150 - 5875 |
