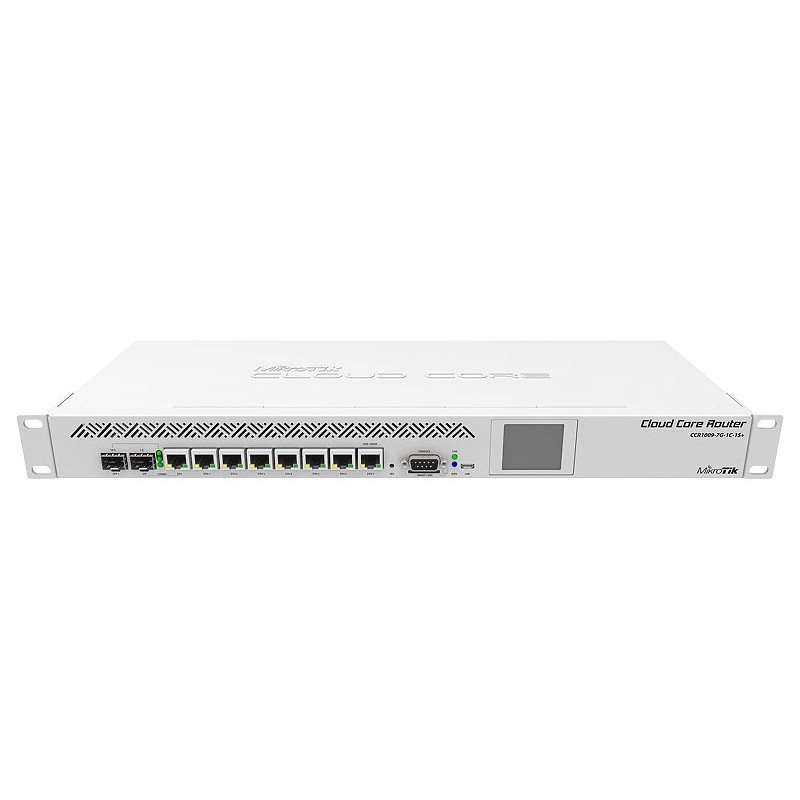

MikroTik CCR1009-7G-1C-1S+

SKU: CCR1009-7G-1C-1S+
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
$599.00
$689.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

Specifications

Details
Product code CCR1009-7G-1C-1S+
Architecture TILE
CPU TLR4-00980CH-10CE-A3b
CPU core count 9
CPU nominal frequency 1.2 GHz
Dimensions 444x175x47mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20C .. +60C
Suggested price $495.00

Powering

Details
Max Power consumption 34W
PoE in Passive PoE
PoE in input Voltage 15-57 V
Number of AC inputs 2
AC input range 100-240 V
Number of DC inputs 1 (PoE-IN)

Ethernet

Details
10/100/1000 Ethernet ports 7
Ethernet Combo ports 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of SIM slots 1 Smart card (Mini SIM)
Number of USB ports 1
Serial port RS232
USB Power Reset Yes
USB slot type microUSB type AB

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Ethernet test results

CCR1009-7G-1C-1S+ Tile 9 core all port test with combo-port and SFP+
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 1,300.4 15,792.1 3,759.4 15,398.5 17,782.8 9,104.8
Bridging 25 bridge filter rules 1,244.4 15,112.0 1,395.3 5,715.1 1,368.1 700.5
Routing none (fast path) 1,300.4 15,792.1 3,759.4 15,398.5 17,411.2 8,914.5
Routing 25 simple queues 1,300.4 15,792.1 1,925.6 8,195.4 1,977.0 1,328.5
Routing 25 ip filter rules 739.2 8,976.8 793.9 3,378.8 801.8 538.8
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

CCR1009-7G-1C-1S+ CCR1009 series 1.2 GHz IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 130.5 1461.6 123.4 505.4 115.4 59.1
256 tunnels AES-128-CBC + SHA1 237.4 2658.9 278.2 1139.5 293.0 150.0
256 tunnels AES-128-CBC + SHA256 237.4 2658.9 278.2 1139.5 293.0 150.0
256 tunnels AES-256-CBC + SHA1 240.5 2693.6 275.5 1128.4 292.7 149.9
256 tunnels AES-256-CBC + SHA256 240.5 2693.6 275.5 1128.4 292.7 149.9
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
