Picture of MikroTik CCR1016-12G Cloud Core Router Picture of MikroTik CCR1016-12G Cloud Core Router Picture of MikroTik CCR1016-12G Cloud Core Router Picture of MikroTik CCR1016-12G Cloud Core Router

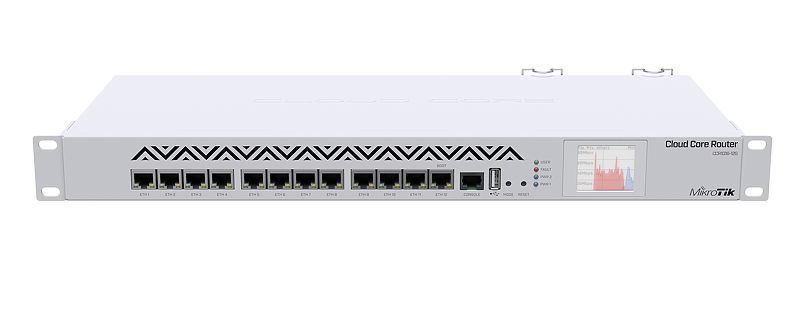

MikroTik CCR1016-12G Cloud Core Router

Be the first to review this product
SKU: CCR1016-12G
Availability: Out of stock
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6, Dual PSU
$764.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!

Specifications

Details
Product codeCCR1016-12G
ArchitectureTILE
CPUTLR4-01680
CPU core count16
CPU nominal frequency1.2 GHz
Dimensions355x145x44mm
License level6
Operating SystemRouterOS
Size of RAM2 GB
Storage size512 MB
Storage typeNAND
Tested ambient temperature-20°C to 60°C

Powering

Details
Number of AC inputs2
AC input range100-240
Max power consumption42 W
Max power consumption without attachments37 W

Ethernet

Details
10/100/1000 Ethernet ports12

Peripherals

Details
Serial portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Mode buttonYes

Certification & Approvals

Details
CertificationCE/RED, EAC, ROHS

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!

Specifications

Details
Product codeCCR1016-12G
ArchitectureTILE
CPUTLR4-01680
CPU core count16
CPU nominal frequency1.2 GHz
Dimensions355x145x44mm
License level6
Operating SystemRouterOS
Size of RAM2 GB
Storage size512 MB
Storage typeNAND
Tested ambient temperature-20°C to 60°C

Powering

Details
Number of AC inputs2
AC input range100-240
Max power consumption42 W
Max power consumption without attachments37 W

Ethernet

Details
10/100/1000 Ethernet ports12

Peripherals

Details
Serial portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Mode buttonYes

Certification & Approvals

Details
CertificationCE/RED, EAC, ROHS
