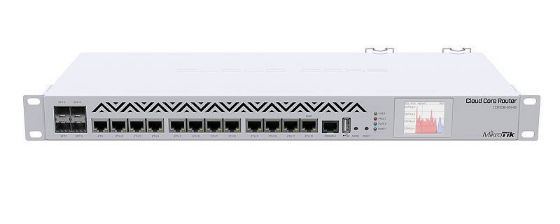

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Specifications
Details |
Product code |
CCR1036-12G-4S |
Architecture |
TILE |
CPU |
TLR4-03680 |
CPU core count |
36 |
CPU nominal frequency |
1.2 GHz |
Dimensions |
355x145x44mm |
License level |
6 |
Operating System |
RouterOS |
Size of RAM |
4 GB |
Storage size |
1 GB |
Storage type |
NAND |
Tested ambient temperature |
-20°C to 60°C |
Powering
Details |
Number of AC inputs |
2 |
AC input range |
100-240 |
Max power consumption |
60 W |
Ethernet
Details |
10/100/1000 Ethernet ports |
12 |
Fiber
Details |
SFP DDMI |
Yes |
SFP ports |
4 |
Peripherals
Details |
Serial port |
RJ45 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other
Details |
CPU temperature monitor |
Yes |
PCB temperature monitor |
Yes |
Mode button |
Yes |
