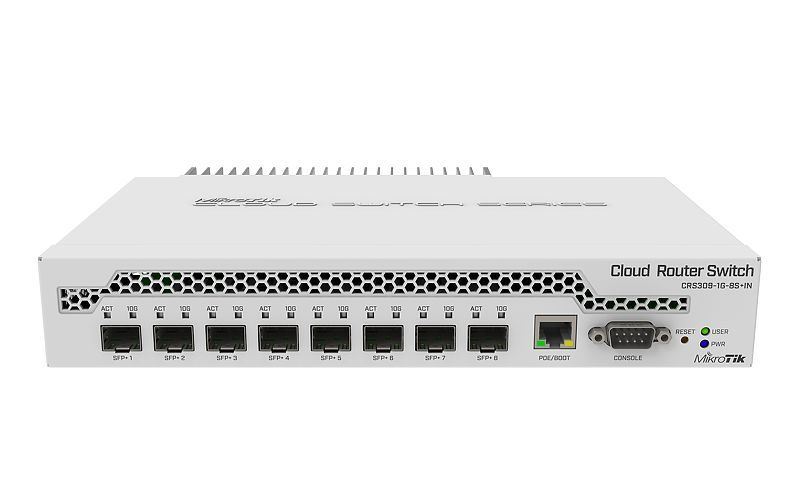

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
Specifications
Details |
Product code |
CRS309-1G-8S+IN |
Architecture |
ARM 32bit |
CPU |
98DX8208 |
CPU core count |
2 |
CPU nominal frequency |
800 MHz |
Dimensions |
272 x 158 x 44 mm |
License level |
5 |
Operating System |
RouterOS / SwitchOS |
Size of RAM |
512 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 70°C |
Powering
Details |
PoE in |
802.3af/at |
PoE in input Voltage |
18-57 V |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-57 V |
Max power consumption |
23 W |
Max power consumption without attachments |
17 W |
Ethernet
Details |
10/100/1000 Ethernet ports |
1 |
Peripherals
Details |
Serial port |
RS232 |
Other
Details |
CPU temperature monitor |
Yes |
Certification & Approvals
Details |
Certification |
CE/RED, EAC, ROHS |
