MikroTik RB750UPr2 hEX PoE lite
SKU:
RB750UPr2
Delivery date: Lead Time 3 - 5 days
5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4

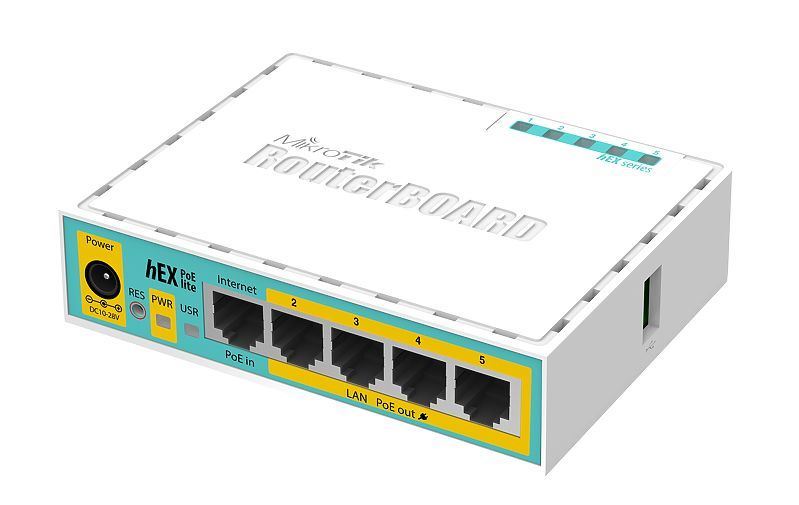

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.
Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
Specifications
Details |
Product code |
RB750UPr2 |
Architecture |
MIPSBE |
CPU |
QCA9531 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
Dimensions |
113x89x28mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 70°C |
Powering
Details |
PoE in |
Passive PoE |
PoE in input Voltage |
8-30 V |
PoE out |
Passive PoE |
PoE-out ports |
Ether2-Ether5 |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
8-30 V |
Max out per port output (input < 30 V) |
1 A |
Max total out (A) |
2 A |
Max power consumption |
51 W |
Max power consumption without attachments |
3 W |
Ethernet
Details |
10/100 Ethernet ports |
5 |
Peripherals
Details |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other
Details |
Current Monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Details |
Product code |
RB750Gr3 |
Architecture |
MMIPS |
CPU |
MT7621A |
CPU core count |
2 |
CPU nominal frequency |
880 MHz |
CPU Threads count |
4 |
Dimensions |
113x89x28mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
256 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 60°C |
Powering
Details |
PoE in |
Passive PoE |
PoE in input Voltage |
8-30 V |
Number of DC inputs |
2 (PoE-IN, DC jack) |
DC jack input Voltage |
8-30 V |
Max power consumption |
10 W |
Max power consumption without attachments |
5 W |
Ethernet
Details |
10/100/1000 Ethernet ports |
5 |
Peripherals
Details |
Memory card type |
microSD |
Memory Cards |
1 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Mode button |
Yes |
