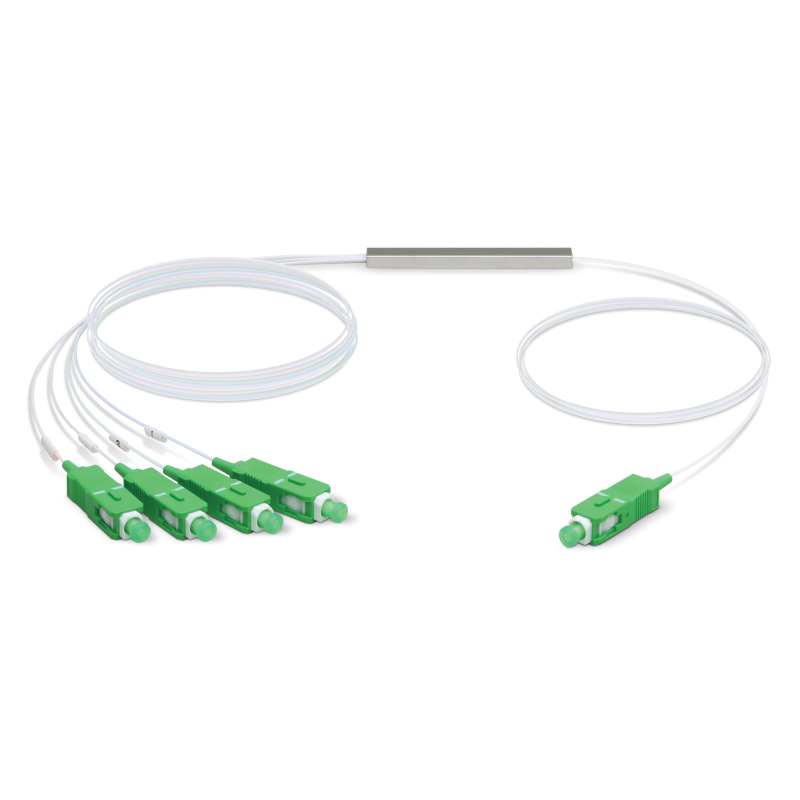

UFiber | Splitter with 4 Outputs

SKU: UFiber | Splitter with 4 Outputs

Availability: Out of stock

Delivery date: Lead Time 3 - 5 days

Manufacturer: Ubiquiti

UFiber Splitter. The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs.

$33.35

Qty:

UFiber GPON Network Topology Example

UFiber Splitter

UF-Splitter-4

Input	(1) SC/APC
Outputs	(4) SC/APC
Insertion Loss with Connectors	7.4 dB
Uniformity Loss	0.6 dB
Polarization Dependent Loss	0.3 dB
Wavelength Bandwidth	1260-1650 nm
Return Loss (All Ports)	50 dB
Directivity	55 dB
Fiber Type	G657A1
Operating Temperature	-40 to 85° C (-40 to 185° F)
Total Length	4.06m (13.32')
Weight	58 g (2.0 oz)

UFiber Splitter

UF-Splitter-4

Input	(1) SC/APC
Outputs	(4) SC/APC
Insertion Loss with Connectors	7.4 dB
Uniformity Loss	0.6 dB
Polarization Dependent Loss	0.3 dB
Wavelength Bandwidth	1260-1650 nm
Return Loss (All Ports)	50 dB
Directivity	55 dB
Fiber Type	G657A1
Operating Temperature	-40 to 85° C (-40 to 185° F)
Total Length	4.06m (13.32')
Weight	58 g (2.0 oz)
