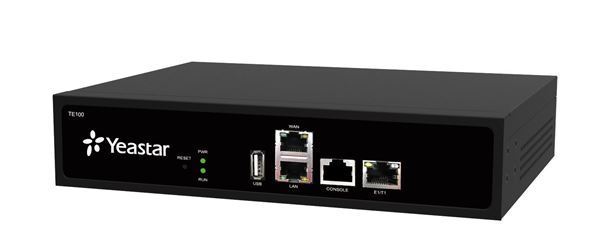

Yeastar TE100 E1/T1/PRI VoIP Gateway

Be the first to review this product

SKU: TE100

Availability: Out of stock

Delivery date: Out of Stock

Manufacturer: Yeastar

TE VoIP E1/ T1 /J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP) supports up to 30/60 concurrent calls. TE Sereis offers SMBs cost effective additions to a legacy telephone system to bring the true benefits of VoIP. Yeastar ISDN VoIP Gateways bridge the gap between traditional ISDN telephony connections such as common RJ-48c / T1 interfaces to provide dial tone to most VoIP PBX phone systems including Yeastar IP PBX. TE Series PRI VoIP Gateway provides an easy and trustworthy conjunction of IP-based system and E1/T1/PRI line. It is suitable when the local IP telephony network is constructed gradually in an institution that already has a legacy E1/T1/PRI network. Any SIP-based VoIP infrastructure, including IP-PBX, hosted IP-PBX, VoIP call center could benefit from this conjunction.

$997.00

Qty:

Models	TE100	TE200
E1/T1/J1 Ports (Support PRI, E&M)	1	2
Protocol	SIP (RFC3261)
Transport Protocol	UDP, TCP, TLS, SRTP
Codec	G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation	ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode	RFC2833, SIP Info, In-band
Network	DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
Network Protocol	FTP, TFTP, HTTP, HTTPS, SSH
PRI switch types	Euro ISDN, nation, Q.SIG
Caller ID	BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
LAN	1 10/100Mbps	1 10/100/1000Mbps
WAN	1 10/100Mbps	1 10/100/1000Mbps
USB	1
Power Supply	AC 100-240V (12V 2A)
Dimensions (L × W × H) (mm)	213 x 160 x 44
Operation Range	0°C to 40°C, 32°F to 104°F;
Storage Range	-20°C to 65°C, -4°F to 149°F
Humidity	10-90% non-condensing

Overview
Specifications

Models	TE100	TE200
E1/T1/J1 Ports (Support PRI, E&M)	1	2
Protocol	SIP (RFC3261)
Transport Protocol	UDP, TCP, TLS, SRTP
Codec	G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation	ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode	RFC2833, SIP Info, In-band
Network	DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
Network Protocol	FTP, TFTP, HTTP, HTTPS, SSH
PRI switch types	Euro ISDN, nation, Q.SIG
Caller ID	BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
LAN	1 10/100Mbps	1 10/100/1000Mbps
WAN	1 10/100Mbps	1 10/100/1000Mbps
USB	1
Power Supply	AC 100-240V (12V 2A)
Dimensions (L × W × H) (mm)	213 x 160 x 44
Operation Range	0°C to 40°C, 32°F to 104°F;
Storage Range	-20°C to 65°C, -4°F to 149°F
Humidity	10-90% non-condensing
