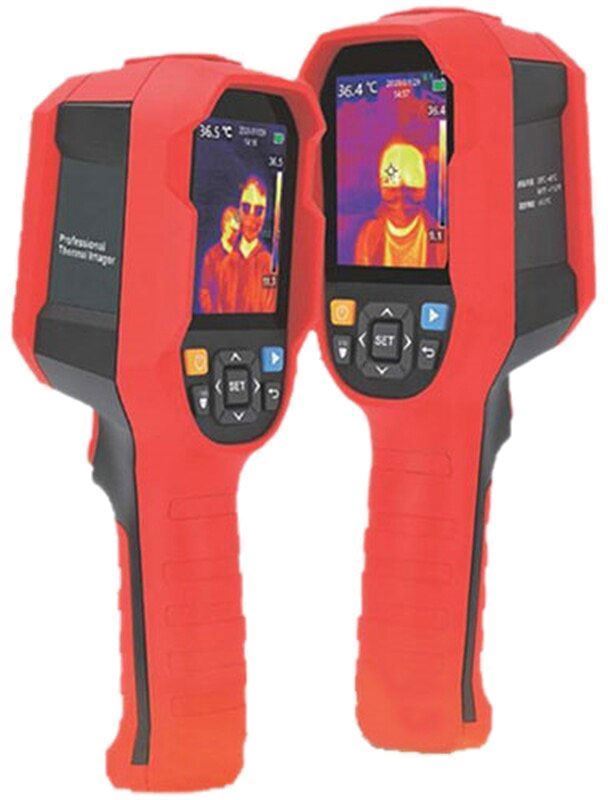

Uni-2165H Handheld thermal Imager

Delivery date: Lead Time 7 - 10 days
Manufacturer: Uniview
UNI-2165H Thermal Imager for Measuring Body Temperature. This hand held thermal imager is used to detect the body temperature or body heat from people quickly and easily. Hand held and portable with a built in rechargeable battery, this portable body heat detector has a built in alarm that can be set to trigger when a fever is detected.
$2,759.00

Key Features:

  • Specs
    • Uncooled focal plate sensor
    • Temperature range 30°C ~ 45°C (86°F ~ 113° F)
    • Resolution: .1° C (32.18°F)
    • Accuracy: ± .5°C (32.9°F) at 1m (3ft)
    • Minimum measuring distance: 15cm
    • Temperature measurement response time: ≤5OOms (95% of reading)
    • Thermal resolution: 19200 (160 X 120)
    • Pixel dimensions: 12µm
    • Palettes of Black/white, red/white, blue/white, iron red, rainbow
    • Bandwidth of infraed spectroscopy: 8~14µm
    • Field of view: (FOV) S6°(H) X 42°(V)
    • Instantaneous field of view (IFOV): 6mrad
    • Thermal imaging sensitivity: ≤5Omk
    • Frame rate: <9Hz
    • Temperature display: Center temperature measurement and high temperature tracking (default)
    • Image format: BMP
    • Image modes: Thermal imagery
    • Temperature measuring point: Besides central point, 3 temperature measuring points can be added
    • Display resolution: 320X240
    • PC analysis software (PC)
    • Data communication: Type-C USB
    • Auto power off: Selectable (Smin, lOmin, 30min), 30min auto power off (default)
    • Service time: ≥6 hours
    • Charging time: 4 hours
    • Image storage: Micro SD Card
  • General Characteristics
    • Power: A single Li-ion 3.7V/5000mAh 26650 battery
    • Display: 2.8"TFT LCD
    • Product color: Red + grey
    • Product size: 236mm x 75.5mm x 86mm
    • Standard accessories: Manual, Type-C USB cable, 16GB TF card
    • Standard carton gross weight: 2.2kg







Key Features:

  • Specs
    • Uncooled focal plate sensor
    • Temperature range 30°C ~ 45°C (86°F ~ 113° F)
    • Resolution: .1° C (32.18°F)
    • Accuracy: ± .5°C (32.9°F) at 1m (3ft)
    • Minimum measuring distance: 15cm
    • Temperature measurement response time: ≤5OOms (95% of reading)
    • Thermal resolution: 19200 (160 X 120)
    • Pixel dimensions: 12µm
    • Palettes of Black/white, red/white, blue/white, iron red, rainbow
    • Bandwidth of infraed spectroscopy: 8~14µm
    • Field of view: (FOV) S6°(H) X 42°(V)
    • Instantaneous field of view (IFOV): 6mrad
    • Thermal imaging sensitivity: ≤5Omk
    • Frame rate: <9Hz
    • Temperature display: Center temperature measurement and high temperature tracking (default)
    • Image format: BMP
    • Image modes: Thermal imagery
    • Temperature measuring point: Besides central point, 3 temperature measuring points can be added
    • Display resolution: 320X240
    • PC analysis software (PC)
    • Data communication: Type-C USB
    • Auto power off: Selectable (Smin, lOmin, 30min), 30min auto power off (default)
    • Service time: ≥6 hours
    • Charging time: 4 hours
    • Image storage: Micro SD Card
  • General Characteristics
    • Power: A single Li-ion 3.7V/5000mAh 26650 battery
    • Display: 2.8"TFT LCD
    • Product color: Red + grey
    • Product size: 236mm x 75.5mm x 86mm
    • Standard accessories: Manual, Type-C USB cable, 16GB TF card
    • Standard carton gross weight: 2.2kg







Products specifications
Warranty 1 Year
